不同的用途与详细介绍：Purpose and introduction

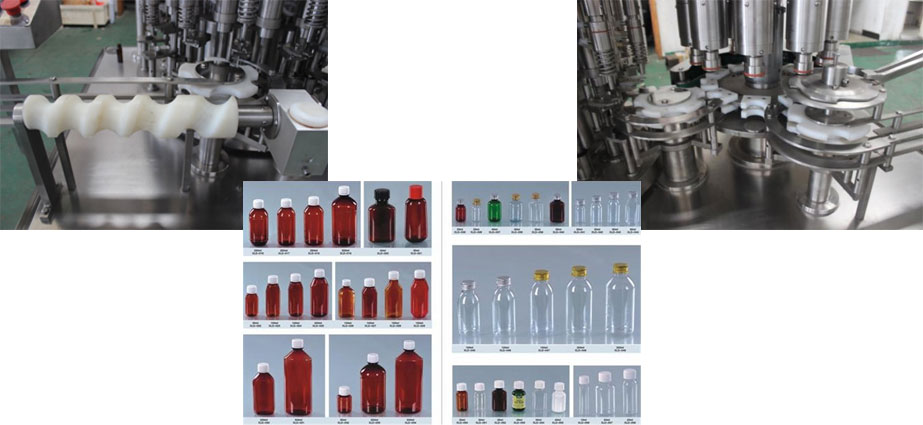

超声波焊接机选使用于对30-500ML全系列钢化朔胶瓶子、朔胶瓶的分装塑封。按照往来账联系式柱塞去分装，电磁炉振荡器送盖，还能轧盖(黑色金属式)或旋盖(朔胶盖)塑封，还能和先后的产出加工过程机 联结构成的产出线，最后还能选用百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

特征 ：characteristic

装量正确，杜尽滴漏问题。缺瓶不罐装。 交流变频可控硅调压。 被动彰显记数功能主治。 整个机器均按GMP符合要求设计制作。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

工艺产品参数/technical parameters：

型号 model	NQGX30-500
支持尺寸Cutting dimension	30-500ml
生产程度Production capacity	80-200瓶/分（罐/分鐘）80-200 bottles/min (cans/min)
分装精密度较 Filling accuracy	≤±1%
电源开关 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
机械化总重量 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
