作用与详细资料/Brief Introduction：

超声波焊接机是替代内服液有机玻璃板瓶的新物品，彻底消除改善了以前内服液有机玻璃板瓶的欠佳功效。这种灌封机常用的塑瓶，既要不所需洗瓶机、风干机，更不所需清洁消毒，会真接灌封。设备全自主理瓶、进瓶、装灌线，装灌线量比较比较稳定，无漏滴，无瓶不装灌线。上盖、粘口率大约100%。此机技能现进，球重量轻、程序运行比较比较稳定、噪音污染低，的操作维护保养、的洗涤快捷等特征 ，仍然达到GMP标淮。This machine is a new product instead of oral liquid bottles, thoroughly solved before the adverse effect of oral liquid glass bottle. The used plastic bottles, filling and sealing machine not only don't need to bottle washer, dryer, more don't need disinfection, can be directly potting. The machine is fully automatic unscramble bottle, bottle feeding, filling, filling volume stability, no LouDi, no bottle no filling. Cover and sealing rate can reach 100%. This machine technology is advanced, small volume, stable running, low noise, convenient operation and maintenance, cleaning, etc, in full compliance with GMP standard.注：本产品型号有中速和高速公路这两种产能供您确定。Note: this model has two kinds of low speed and high-speed production for your choice.

特殊性 Characteristic

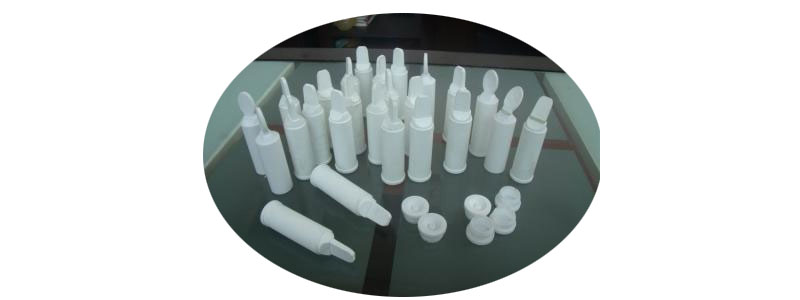

◆滤油机选用来所有易折瓶冲剂液测量灌装生产线和封膜。The machine is suitable for all kinds of folding bottles of oral liquid filling and sealing of measurement.◆各种电热器pcb板均适用顶级品脾。All electrical components adopt famous brand◆滤油机实操客观快捷，无瓶不罐装，压力容器检验*。It has intuitive and convenient operation, no bottle no filling, measuring precision.◆易折氟塑料瓶子灌封机的主要的构造与方式Easy to fold the main structure and principle of plastic bottle filling and sealing machine◆NFGFY型服用液易折朔料瓶灌封机主要理瓶器、理盖器、主传动平衡平衡装置机系统、关联带厚度送小瓶置、瓶子检漏平衡平衡装置、装罐贷款平台、筛选平衡平衡装置、热溶封贷款平台、液压自动化机械手指头夹瓶贷款平台、伺服控制器减速机厚度上瓶贷款平台与出瓶贷款平台等分解成。Type NFGFY oral liquid is easy to fold the plastic bottle filling and sealing machine main GaiQi bottle opener, and the main transmission system, the synchronous belt clearance to send bottle device, empty bottle leak detection device, filling body, eliminating device, hot melt sealing mechanism, pneumatic mechanical fingers bottle gap on the bottle structure, servo motor and a bottle of institutions, etc.◆服务器适用的服用液易折塑瓶、盖都是定洁净并用区生产方式的，应具泡脚药材批准证书书证，故而瓶身与底盖经引入和"去业务外包"后可一直进灌封间。利用理盖器、理瓶器的自然定项收纳整理，排除正向底盖及瓶身底口朝下的瓶，使定项后的包材喂料有原则地进气流输送单轨中。Machine using oral liquid is easy to fold the plastic bottles, cover a certain production of clean area, should have the medicine packaging material license, so the bottle and the bottom cover after transfer and "outsourcing" can go directly into the potting. By Richard GaiQi, automatic directional arrangement of bottle opener, eliminate reverse bottom cover and the bottom of the bottle mouth bottle at the bottom, after making the orientation of packaging material feeding regularly into orbit. ◆定向生后服用液易折塑料管瓶在输送管轨道列车总排名Directional oral liquid after folding plastic bottles in conveying rail out easily

技能叁数technical parameters：

型号model	NLGFY-40	NLGFY-80
装量使用范围The load range	5-100ML
生产能力production capacity	20-40瓶/分	50-80瓶/分
封膜率Hot sealing intensity	》99%
装量不确定度The load error	《1.5%
破裂率damage rate	《1.0%
输出power	2KW	3KW
电源模块Power Supply	380V 50Hz/220V 50Hz
外形尺寸boundary dimension	2700*1100*1900mm	3000*1480*1900mm
自重 Weight	700Kg	800Kg
