贷款用途与详细资料：/Purpose and introduction

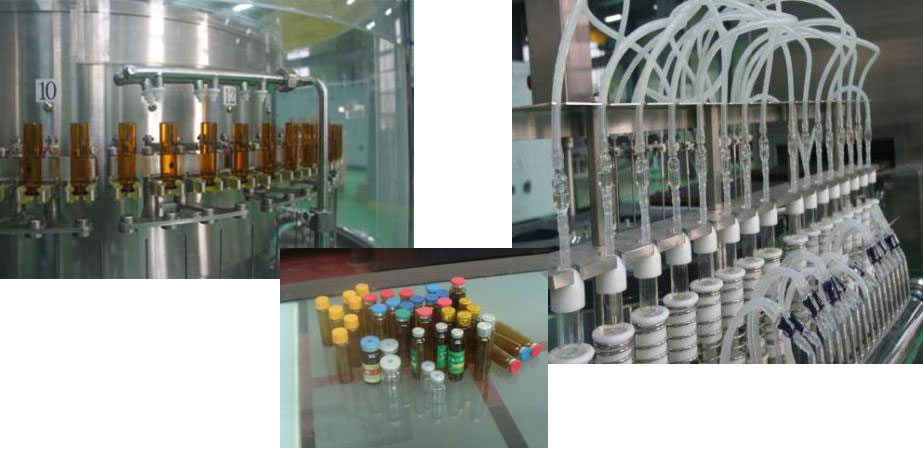

服食液洗烘灌轧对接线由垂直高周波检查波洗瓶机、隊道式暧风 循环系统过滤除菌方法恒温干燥箱、服食液装灌轧盖机等构成，好于 5-30ml 等不一样的规 格服食液瓶的产量。可来完成对医疗药品产量中安瓿瓶淋水、高周波检查波洗涤、冲水、充 气、烘烤过滤除菌方法、加热、装灌、轧盖等工艺设计步聚的对接作业。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

特殊性:/characteristic

◆洗瓶机主要包括自动化设备手夹瓶，应用四种规模的水瓶座；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶运用雾气喷针循环往复监视加上途径，拆洗视觉最合适，得节约新能源。并配有针架防晃动设备，的提升喷针加上小瓶的精准的度，减掉断针问题造成；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整体水蒸气压缩空气管、喷针已经人格独立分不开，规避了相交污染破坏，遵循GMP标准规范耍求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺旋轴前安装储存块，有呵护螺旋轴，削减碎瓶使用Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶使用全局进口量一起带，连入拨块推送服食液，进行比较稳定准确In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆干燥箱通过红外线采暖器管，304不绣钢采暖器管双层玻璃采暖器水温不均性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆装罐轧盖机可选装配陶瓷制品泵、铝合金泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装设备无瓶止灌，无瓶不轧盖特点。Pieces filling without bottle filling, no bottle no rolling function.◆整线用于PLC总把控、直流变频空调器、手触屏把控科技，启用比较稳定安全的。手触屏可展示各单机手机游戏的启用情况下，各把控点的通水压力、压力、压力、热度等展示，各转换开关情况下和出现问题的问题展示，出现问题的问题自我认知物理诊断和出现问题的问题讲解及清除措施。使一个生產步骤实现定时化把控，联线拥有三机自我控制平横系统，确保生產均衡教育安全的。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.依照大家的必须要，还可供标准配置：According to the needs of customers, but also available for selection:◆西门子PLC、德力西、三菱PLC、台达等企业品牌调控程序；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气负荷、水温表及超声检查波力度、灰尘塑料颗粒、风量再线验测、報警、收录、打印文件操作系统。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌检测隔离防晒器系统化。Mixer ORABS, CRABS, aseptic isolator system.

的基本参数值：technical parameters

适于金桥铜业跨接线的截面积大小Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
装罐gps精度Filling accuracy(%)	≤ ± 2.5
灌装生产线头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖优秀率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
